Massive harmonic filters scrub HVDC-to-AC sinewaves — and why the grid needs them

A national electrical grid can be thought of as a massively upscaled circuit, where multiple power sources inject AC power, and various components — resistors, inductors, and capacitors — work to synchronize and clean up that power before it reaches end users. Recently, , also known as , took a closer look at the grid's harmonic filters that perform much of this sinewave scrubbing after HVDC-to-AC conversion.

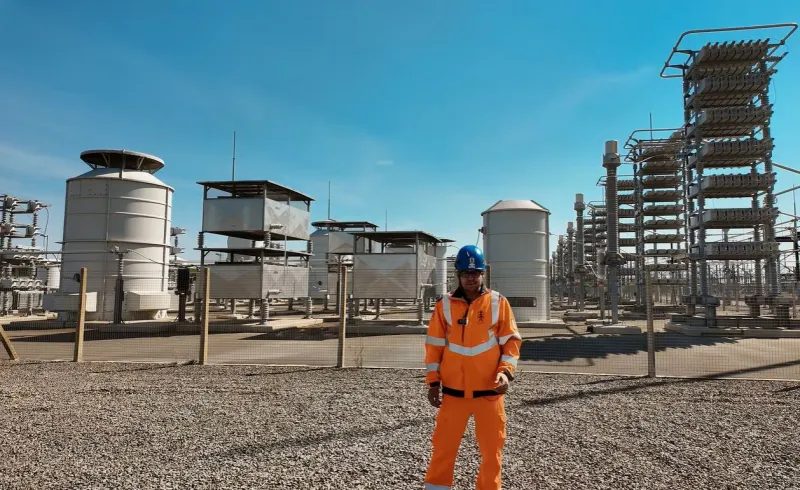

Using a UK-based line-commutated converter (LCC) HVDC station as a physical example, Taylor explains what these harmonic filters are, what they do, and why they are essential. The core issue is that after converting high-voltage direct current (HVDC) back to alternating current, harmonics are introduced into the AC waveform — similar to what happens in a much lower-voltage converter. The result is a noisy sinewave that can potentially damage AC-powered devices, cause heating, and increase losses along the transmission lines.

The solution is an LC filter, but on a scale far larger than what is used in consumer electronics. Taylor covers the design considerations for components at this immense scale, as well as the different types of filters that can be employed.

He also highlights a beneficial synergy: these harmonic filters, with their massive capacitors and inductors, absorb and generate reactive power on the AC grid. This helps dampen oscillations and further contributes to the grid's overall stability. The article provides a clear, practical look at a critical piece of infrastructure that keeps the power clean and reliable.
