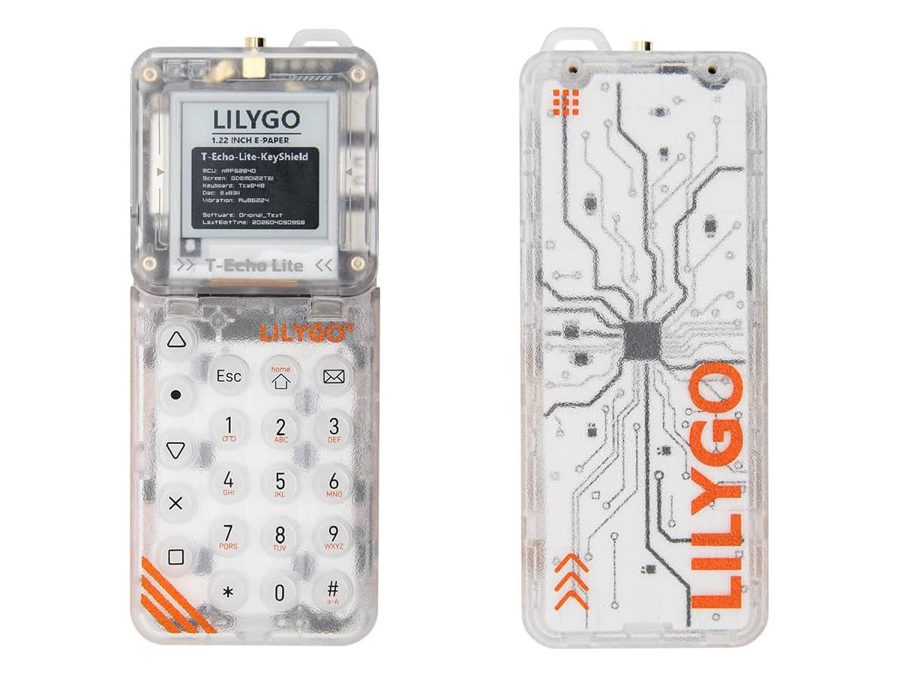

LILYGO T-Echo Lite Kit turns nRF52840 LoRa board into a keyboard-equipped off-grid communicator

LILYGO has introduced the T-Echo Lite Kit, a development platform based on the Nordic nRF52840 microcontroller, now featuring a dedicated keyboard shield. The kit enables direct off-grid communication without requiring a smartphone.

The new product builds upon the T-Echo Lite devkit that was launched last year. The company has added a shield with backlit alphanumeric keys, a 3.5mm audio jack, a built-in speaker, and a vibration motor. This expands the original board's capabilities for messaging, navigation, and data exchange in remote areas.

The core module is built around the Nordic Semiconductor nRF52840 SoC, which integrates a 32-bit Arm Cortex-M4F CPU clocked at 64 MHz. It comes with 1 MB of flash memory and 256 KB of RAM. Wireless connectivity includes Bluetooth 5, Thread, ANT, Bluetooth Mesh, 802.15.4 (Zigbee), and a proprietary 2.4 GHz protocol.

For long-range communication, the kit uses a Semtech SX1262 LoRa transceiver that supports global frequency bands: 433 MHz, 868 MHz, 915 MHz, and 923 MHz. The board also features a 1.22-inch e-paper display with a resolution of 192 by 176 pixels (GDEM0122T61 model), a GPS module for positioning, and power management circuitry.

The T-Echo Lite Kit is aimed at developers and hobbyists who need to build portable devices for off-grid scenarios — such as hiking, emergency communication, or field research — where cellular networks and internet access are unavailable. The combination of a keyboard, e-paper screen, LoRa radio, and GPS makes it a self-contained platform for text-based messaging and location tracking without relying on a smartphone or cloud services.
